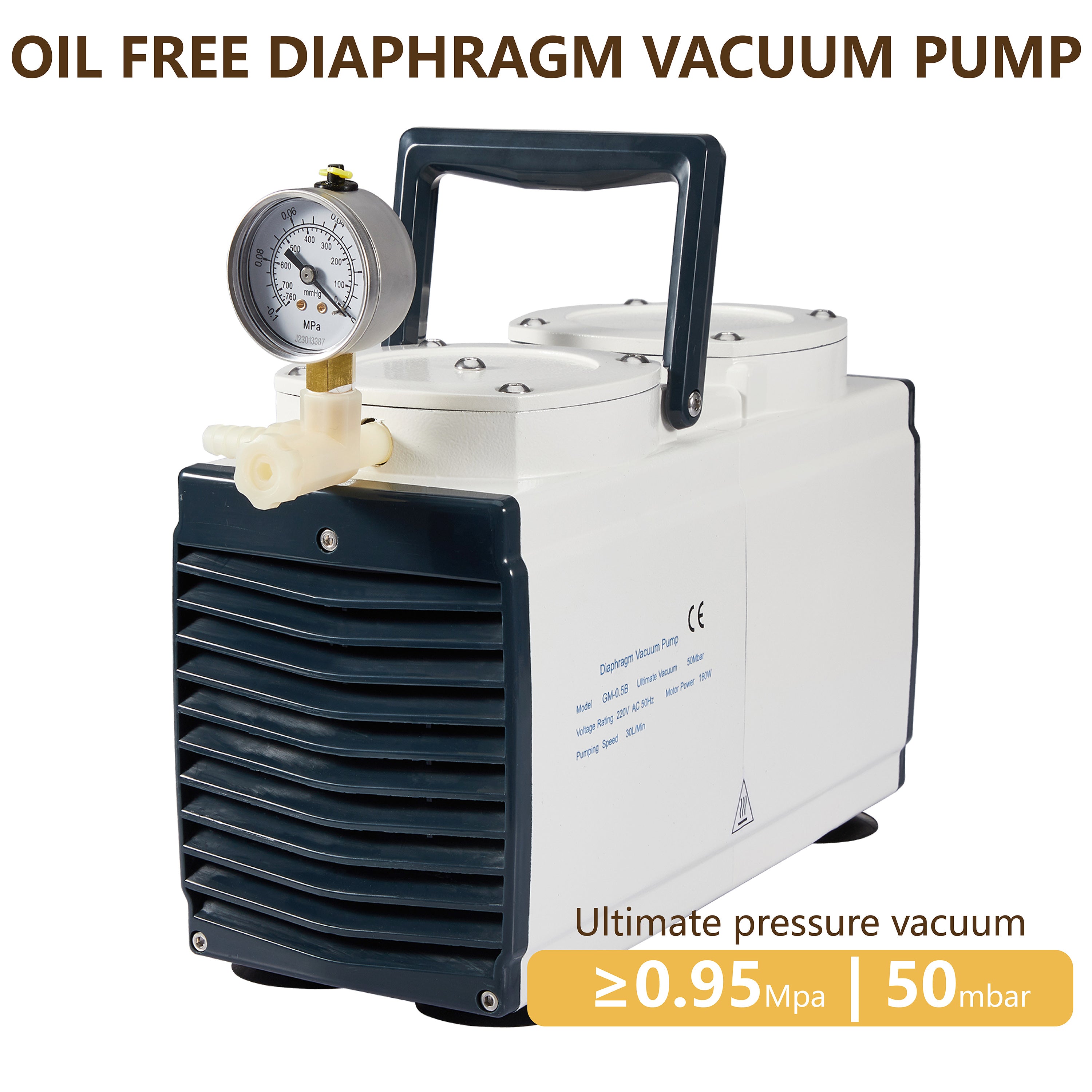

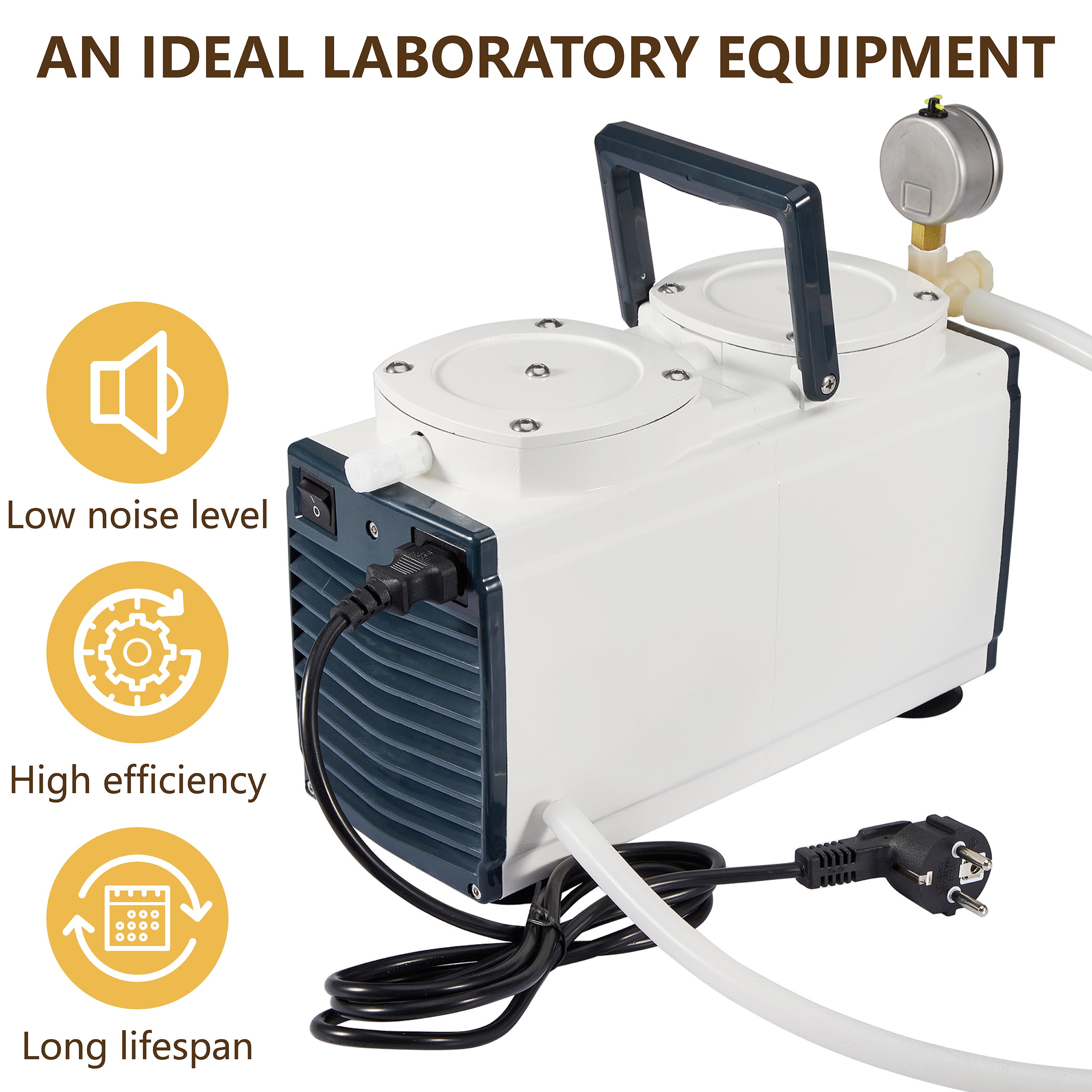

Diaphragm Vacuum Pump
In Stock: 3
Diaphragm Vacuum Pump features oil-free pumping, low noise level, high efficiency and long lifespan. This diaphragm pump is an ideal laboratory equipment for vacuum filtration, vacuum distillation, rotary evaporation, vacuum drying, centrifugal acceleration, solid-phase extraction, and other application requiring chemical resistance.
Couldn't load pickup availability
Clean and Efficient Vacuum System
This highly efficient vacuum pump operates without the need for oil or any other working medium, eliminating the risk of pollution and ensuring clean operation. Built with advanced technology and high-quality materials, the pump delivers an ideal balance of vacuum degree and airflow rate. It achieves an ultimate vacuum pressure of 50 mbar with a pumping speed of 30 L/min, providing reliable performance for a wide range of laboratory applications.
Fast Cooling
Overheat Protection
User-Friendly Design
-
- Specifications
-
- Features
-
- Downloads
| Model | RVP01 |
| Pumping speed | 30L/Min |
| Ultimate pressure vacuum | 50mbar |
| Voltage rating | 220V/110V; 50/60Hz |
| Housing temperature in operation | ＜55℃ |
| Motor power | 160 W |
| Inlet diameter | 6 mm |
| Outlet | Silencer |
| Permissible ambient temperature | 7-40 ℃ |
| Pump heads | 2 |
| Dimensions (L/W/H) | 350 x 130 x 235 mm |
| Noise | ＜60 db |
| Weight | 9 kg |
| Diaphragm valve material | NBR |
Features
-
●

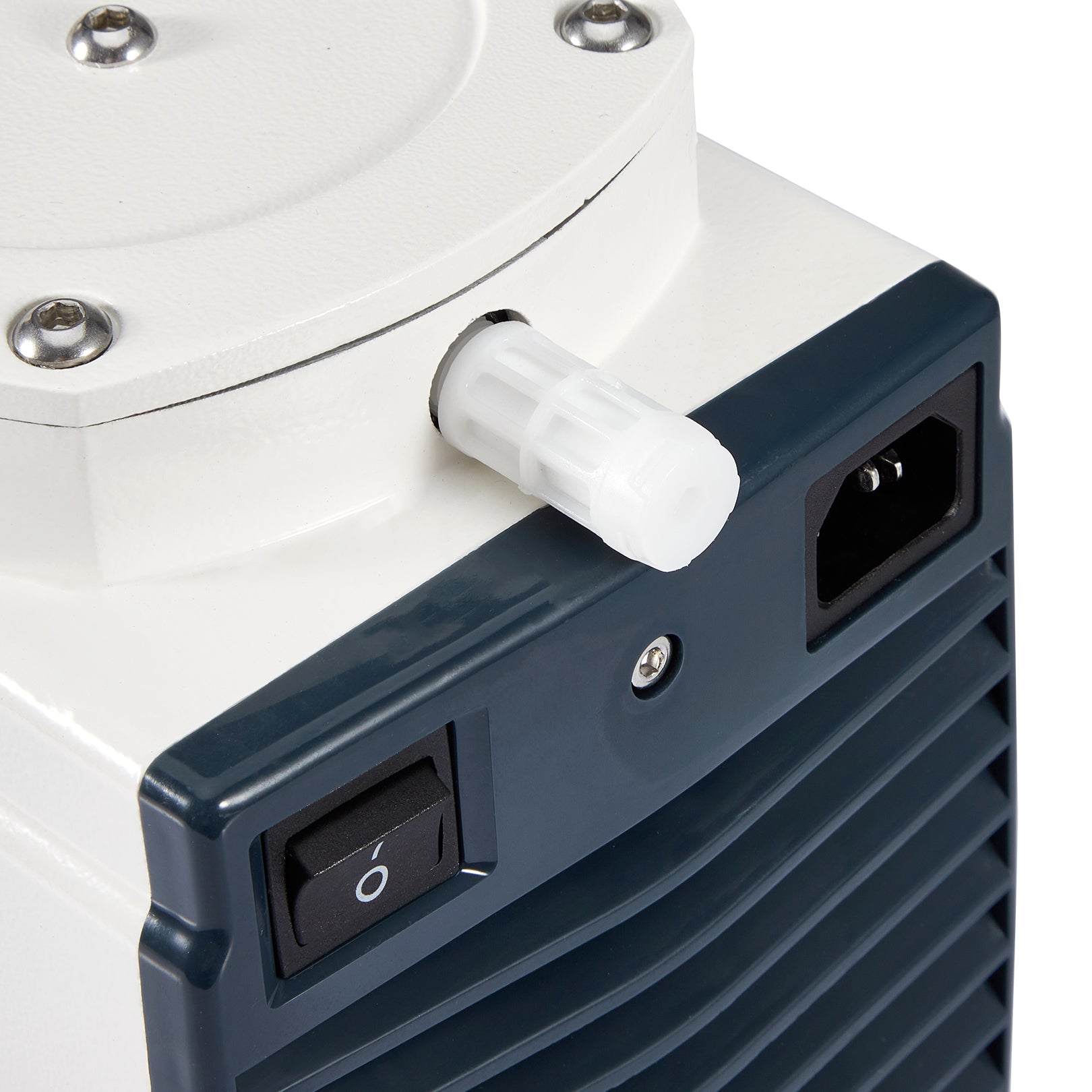

This highly efficient vacuum pump works without any medium like oil, and thus cause no pollution. Inlet Filters are installed to prevent contamination and ensure clean air.
-
●
Advanced technology & materials are adopted for ideal vacuum degree and airflow rate.
-
●
The AC vacuum pump will power off automatically when the pump temperature reaches 130℃. Such overheat protection can prevent motor from damage because of long-time operation.
-
●
Made of nitrile rubber, the diaphragm is durable and anti-corrosive. The friction-free operation will not cause any heat or abrasion to the diaphragm.
-
●
The automated cooling and exhaust system can work continuously around the clock.
-
●

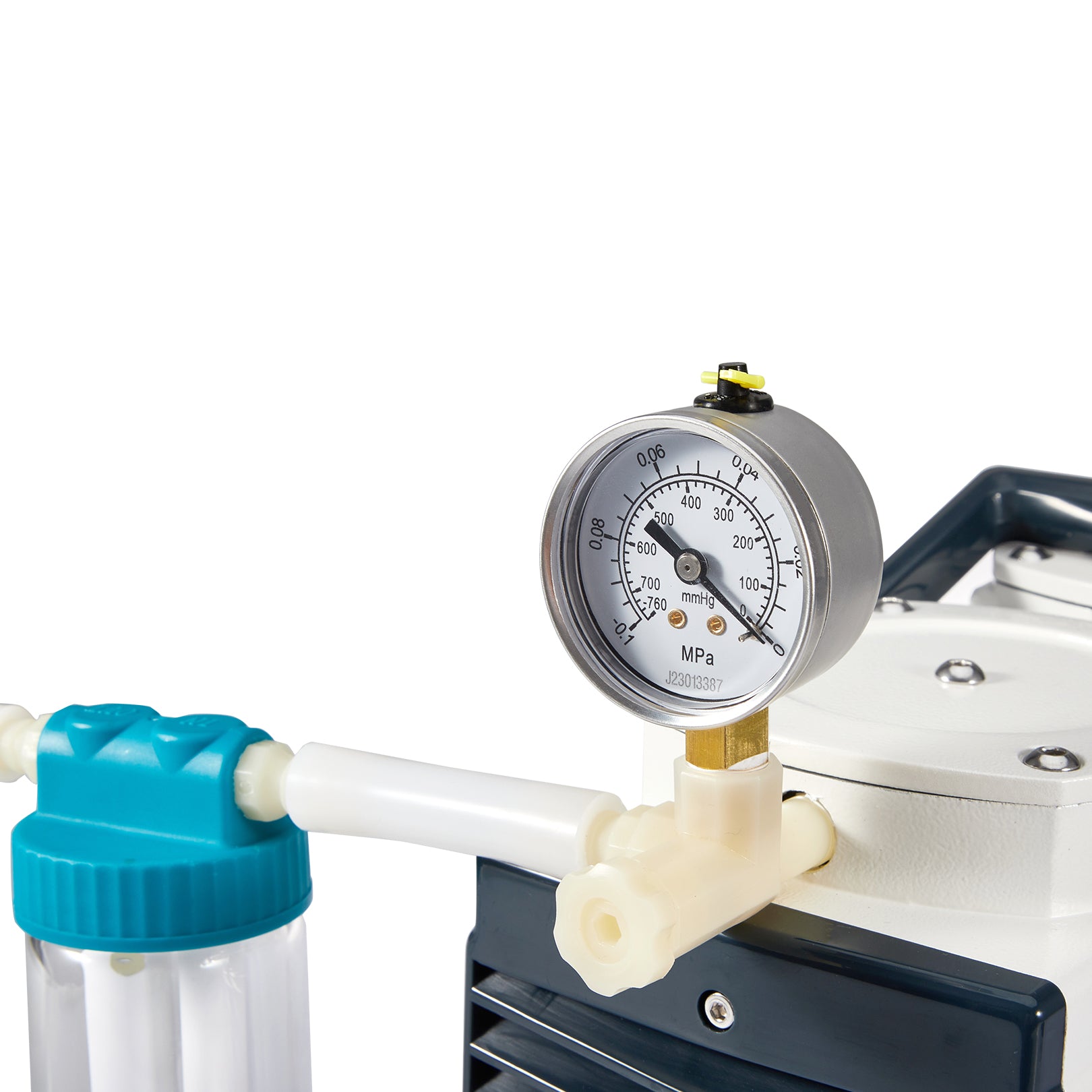

Adjustable pressure valve allows for easy control over vacuum degree.
-
●
High-quality axletrees facilitate steady running and low noise.
-
●
It features compact size and light weight and is easy to maintain.
-
●
The smooth instrument surface is free from accumulation of most impurities and particles.
Diaphragm Vacuum Pump User Manual
Durable Design with Intelligent Protection
The AC vacuum pump features automatic overheat protection and powers off at 130 °C to prevent motor damage during extended operation. Its nitrile rubber diaphragm is durable and corrosion-resistant, with friction-free operation that minimizes heat and wear. High-quality axletrees ensure smooth, stable, and low-noise performance.
Enhanced Air Purity

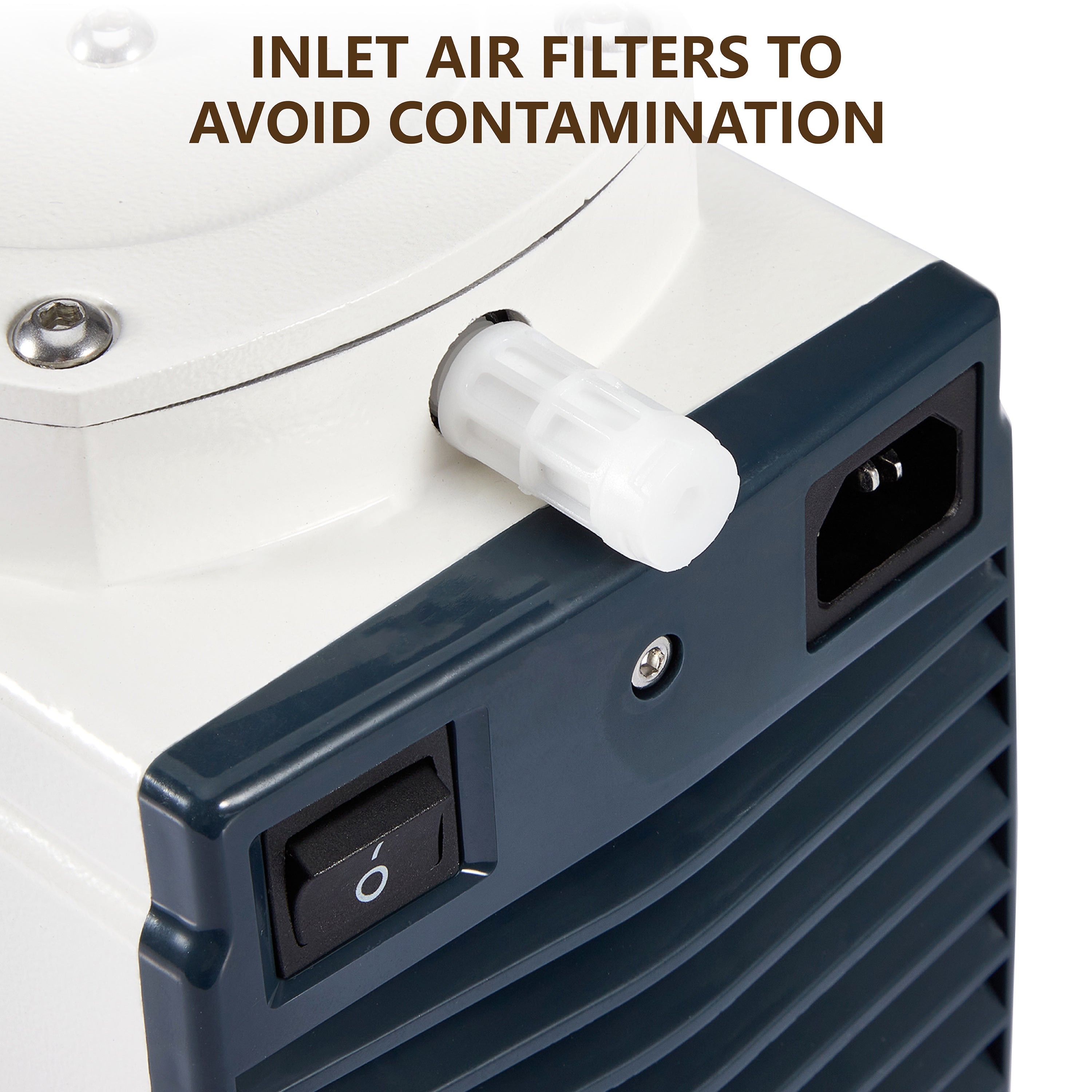

Integrated inlet filters effectively prevent dust, particles, and other contaminants from entering the pump, ensuring a clean and stable airflow. This protective design helps maintain consistent performance, reduces internal wear, and extends the overall service life of the system.
4E’S Vs Other Brands
Oil Free
Overheat Protection
Low Noise
Two Year Warranty
